Universal Testing Machines

(Low Capacity)

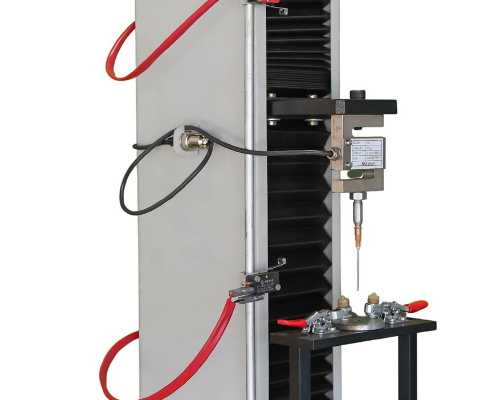

 The EQVIMECH  Model  EM-SSB-100kG is a Single column Universal Testing Machine having a frame capacity up to 10kN. This machine is designed to test a wide range of materials, including, but not limited to: metals, laminated composites, rigid plastics, films, paper, thin sheet metal, adhesives, and foils, in tension, compression, flexure, shear, and peel.  Load measurement accuracy: +/- 0.5% of indicated load from 2% to 100% capacity; extended range. Position measurement accuracy: +/- 0.1% of reading or 0.1 mm, whichever is greater.  Speed accuracy: +/- 1% of set speed.

Description:

100:2 force range (i.e. use the load cell to 2.0% of capacity with no loss of accuracy)

Load accuracy of 0.5% of indicated load

Full software control (cyclic capability optional)

Automatic transducer recognition

Thousands of optional grips and fixtures

Optional temperature chambers

Color: Black base with Gray columns

Advanced load sensor sensing through advanced electronics.

Speed Control through Variable Frequency drive automation by Graphic user interface PC.

Crosshead travel length: 800 mm without grips

Safety limit switches for over travel safety

Advanced Navigation System

High accurate micro-controller based system controls with integrated software

Secured working with key protection feature

Automatic end test/return to the home position through software interface after completion of test.

Immediate analysis of results after test with complete accuracy & precision.

Reliable and user-friendly interface in various industries like rubber, plastics, automotive, polymers, textiles, R&D labs, production, and material testing.
