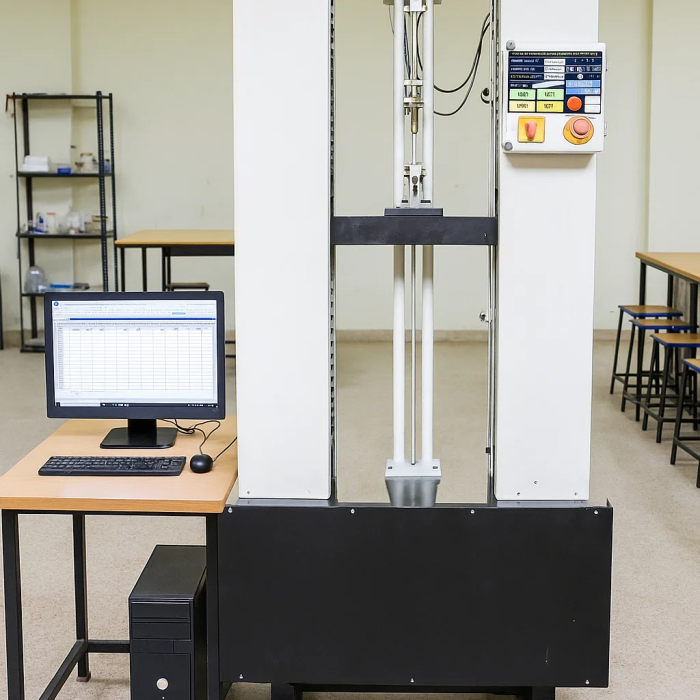

Universal Testing Machine
Universal Testing Machines / Tensile Tester
We have carved a niche amongst the most trusted names in this business, engaged in offering a comprehensive range of Universal Testing Machine.

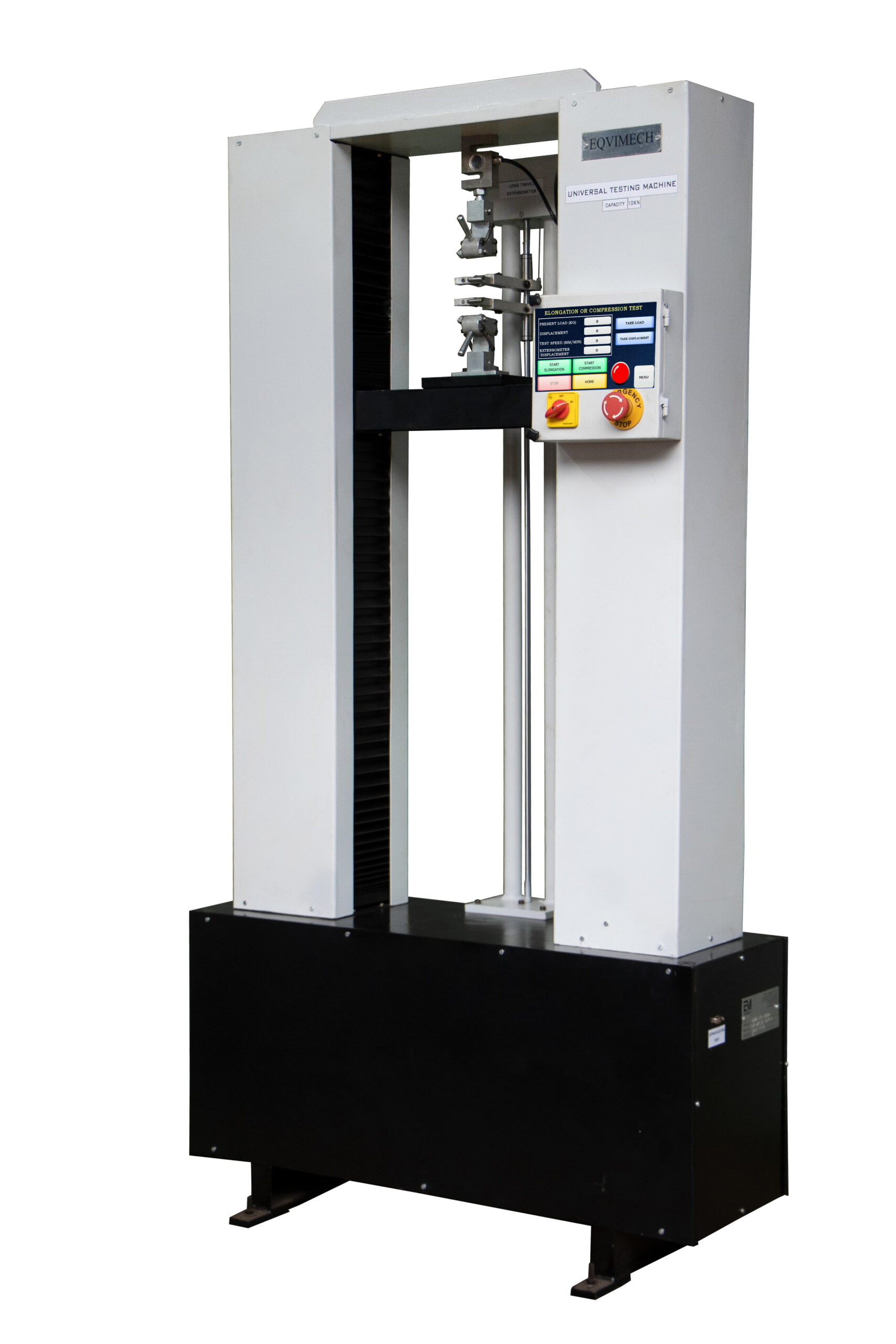

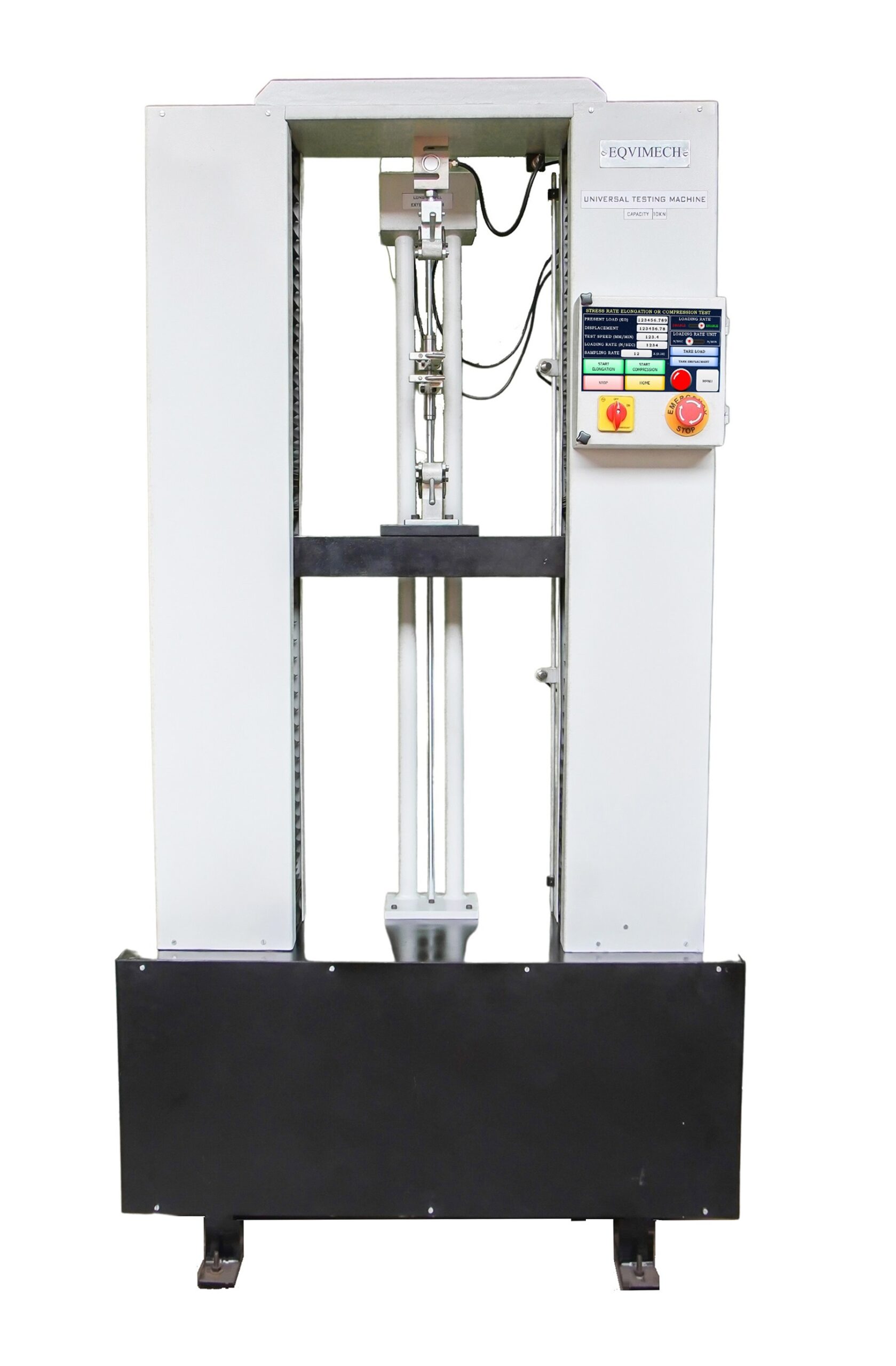

Overview: This Series Dual Column Tabletop Testing Systems are ideal for tension and/or compression applications where tests are less than 200 kN. The various Series Dual Column testing systems provide simplicity, performance, and affordability for quality control (QC) labs and production testing. Models are available in load force capacities of 10, 25, 50, 100, and 200 kN.
| Item | Specification |
|---|---|
|
Operating Mode
|
Electric; Semi-Automatic
|
|
Frequency
|
50 Hz
|
|
Material
|
Mild Steel
|
|
Display Type
|
Digital
|
|
Number of Phases
|
Single Phase
|
|
Power Source
|
Electric
|
|
Voltage
|
220V
|
Description :
- Advanced load sensor sensing through advanced electronics.
- Speed Control through Variable Frequency drive automation by Graphic user interface PC.
- Full software control (cyclic capability optional)
- Crosshead travel length: 1000 mm without grips
- Twin column rugged structure
- Safety limit switches for over travel safety
- Hardened lead screws/ball screws for frictionless movement
- Load cell calibrated by NABL Calibrated Load cell
- Advanced Navigation System
- High accurate micro-controller based system controls with integrated software
- User-Friendly software with intuitive icons and robust architecture
- Inbuilt hardware/software CD
- Option to email test reports
- Single Test start with one-click entry of the mouse.
- Easy Data Management. User-programmable product identification, lot no., the shape of the specimen, company name, and operator details, etc.
- USB compatible for high-speed data transfer
- Print preview of test reports with Zoom Feature available
- Online test run status can be viewed graphically or in raw data form & Export report in excel format
- Secured working with key protection feature
- Ease of use features: Graph setup, test control wizard, formulae/result calculations, reports, live test panel.
- Graph setup: user-defined graph scale/range with Graph Title.
- Test Control Wizard to set test parameters like tension, compression, changeable units in Kgs/N/lbs. or cm/mm/inch.
- Automatic end test/return to home position through software interface after completion of test.
- Immediate analysis of results after test with complete accuracy & precision.
DETAILED SPECIFICATIONS |
|||||

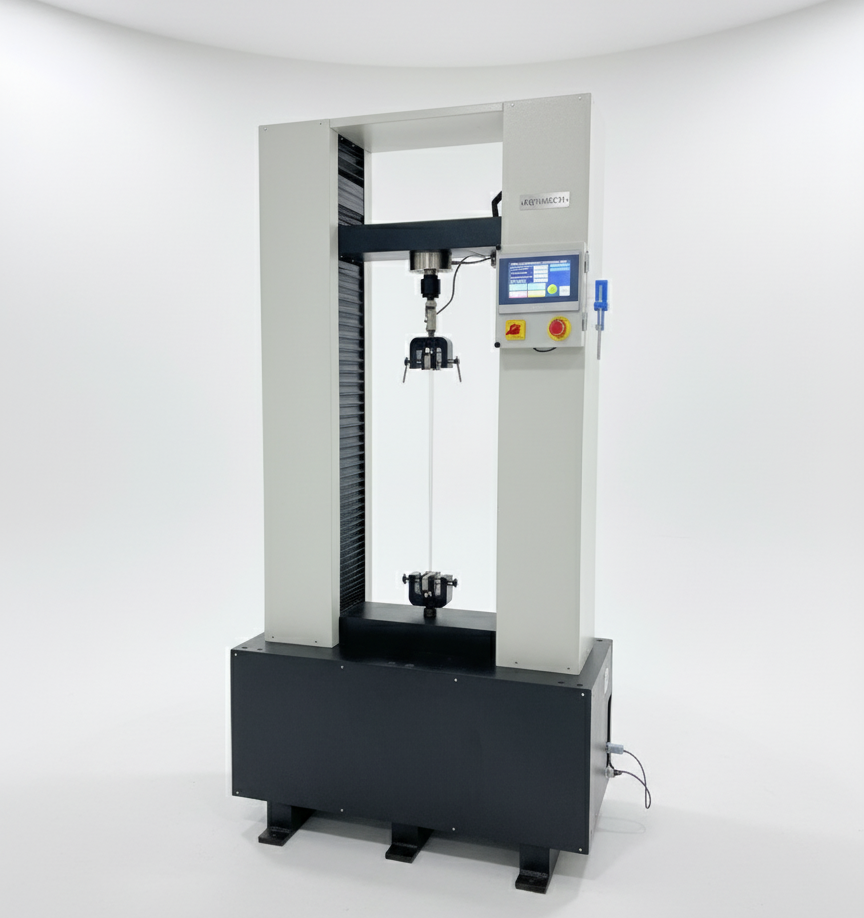

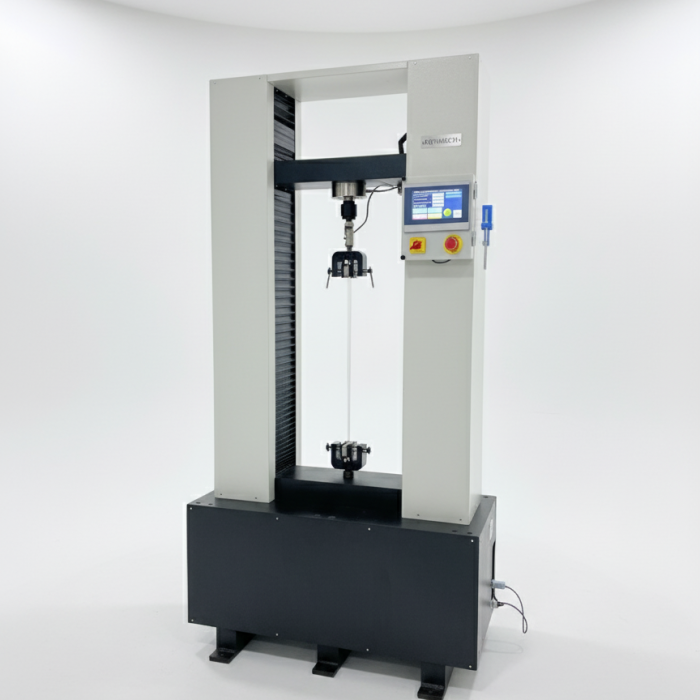

| MODEL NO. | EM-STB– 5 kN | EM-STB– 10 kN | EM-STB– 30 kN | EM-STB – 50 kN | EM-STB – 100 kN |
| Max. capacity (T) | 0.5 | 1 | 3 | 5 | 10 |
| Load Resolution(N) 1:20000 | 0.25 | 0.5 | 1.5 | 2.5 | 5 |
| Max. crosshead displacement without grips/fixtures (mm) |
1000 | 1000 | 1000 | 1000 | 1000 |
| Displacement resolution (mm) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Column clearance(mm) | 440 | 450 | 450 | 450 | 550 |
| Variable speed w.r of Servo Drive | 0.1 mm/min to 500 mm/min | ||||
| Machine Dimensions w x d x h in (mm) | 880 x 400 x 1800 | 880 x 400 x 1800 | 1000 x 400 x 1800 | 1000 x 400 x 1800 | 1000 x 600 x 1800 |
| Power for A.C. Drive | 0.5 HP | 1 HP | 2.0 HP | 3.0 HP | 10 HP |
| Power for A.C. Servo Drive | 400 W | 800 W | 1.5 KW | 2.2 KW | 8.0 KW |
| Power Supply | 230 V AC±10%, Single Phase, 50Hz with Neutral & Earth | ||||
Our Similar Products
(High Capacity)
UNIVERSAL TESTING MACHINES
We have carved a niche amongst the most trusted names in this business, engaged in offering a comprehensive range of Universal Testing Machine.
(custom industrial equipment))
CONCRETE PERMEABILITY APPARATUS
The water permeability test on Concrete determines the resistance of concrete against water under hydrostatic pressure.
(Laboratory)
MFI (MELT FLOW INDEX)
Primarily used for goods inwards checks at plastics processing plants where extrusion tests are performed on an irregular basis.
Download Our Catalogs
Plastic Testing Machine

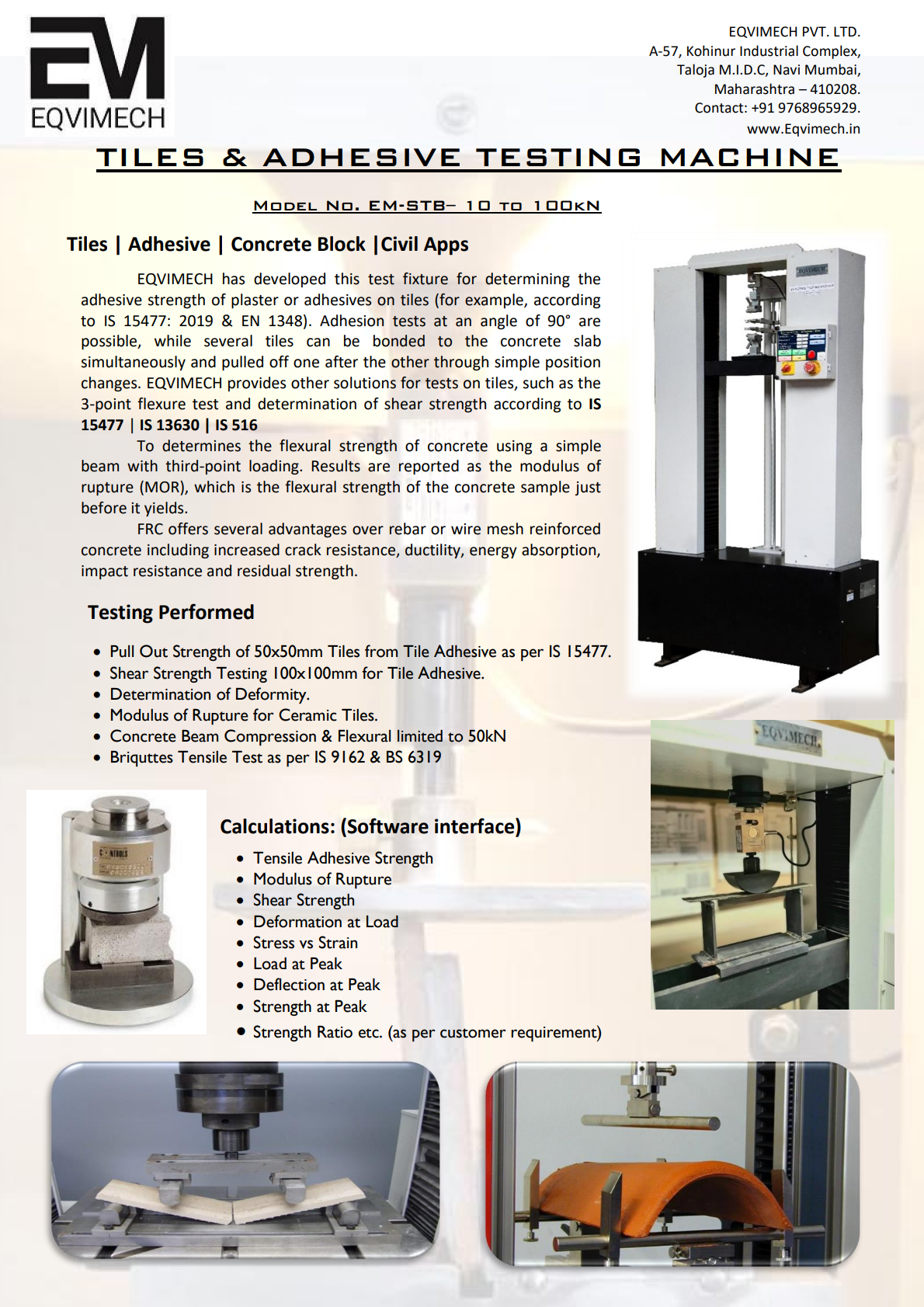

Tile & Adhesive Testing Machine
