MFI(Melt Flow Index)

MFI (Melt Flow Index)

Primarily used for goods inwards checks at plastics processing plants where extrusion tests are performed on an irregular basis. The Table-Top Model with Manual & Automatic Cutting arrangement are designed as a stand-alone instrument for monitoring/verifying of Melt flow rate (MFR).

Description Value Units
Type
Melt flow extrusion (230 V)
Model No.

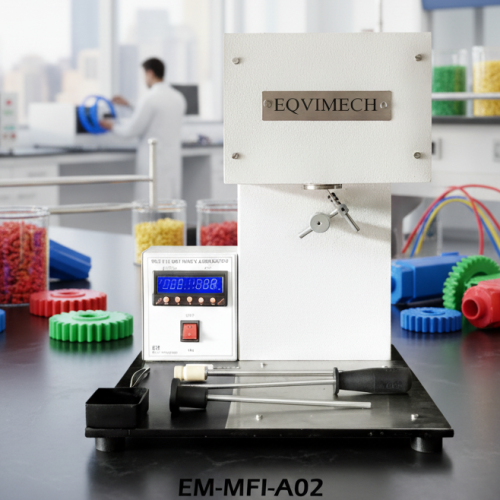

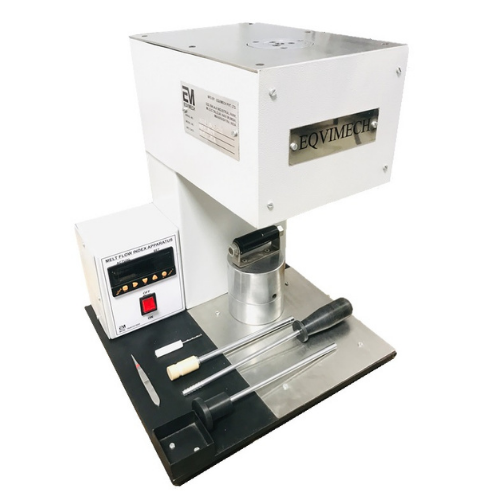

EM-M01 ( Manual Cutting of Sample ) EM-A02 ( Automatic Cutting of Sample )
Test load
0.325 to 21.6
kg
Dimensions
350 mm x 350 mm x 450 mm
Approx. weight
35
kg
Test temperature
120 to 400 Up to 450 when Customized
°C
Display
7-segment LED display (optional)
Temperature display resolution
±0.1
°C
Included in delivery:
Weights for load levels 2.84 kg and 2.16 kg Cleaning accessories : Piston, barrel cleaner; Tungsten Carbide orifice, Barrel Cleaner; orifice Cleaner
Power supply
220 to 240 V | 1Ph
Power consumption (full load); approx
0.6
kVA
Power frequency
50
Hz

Description/Features:
